Product details

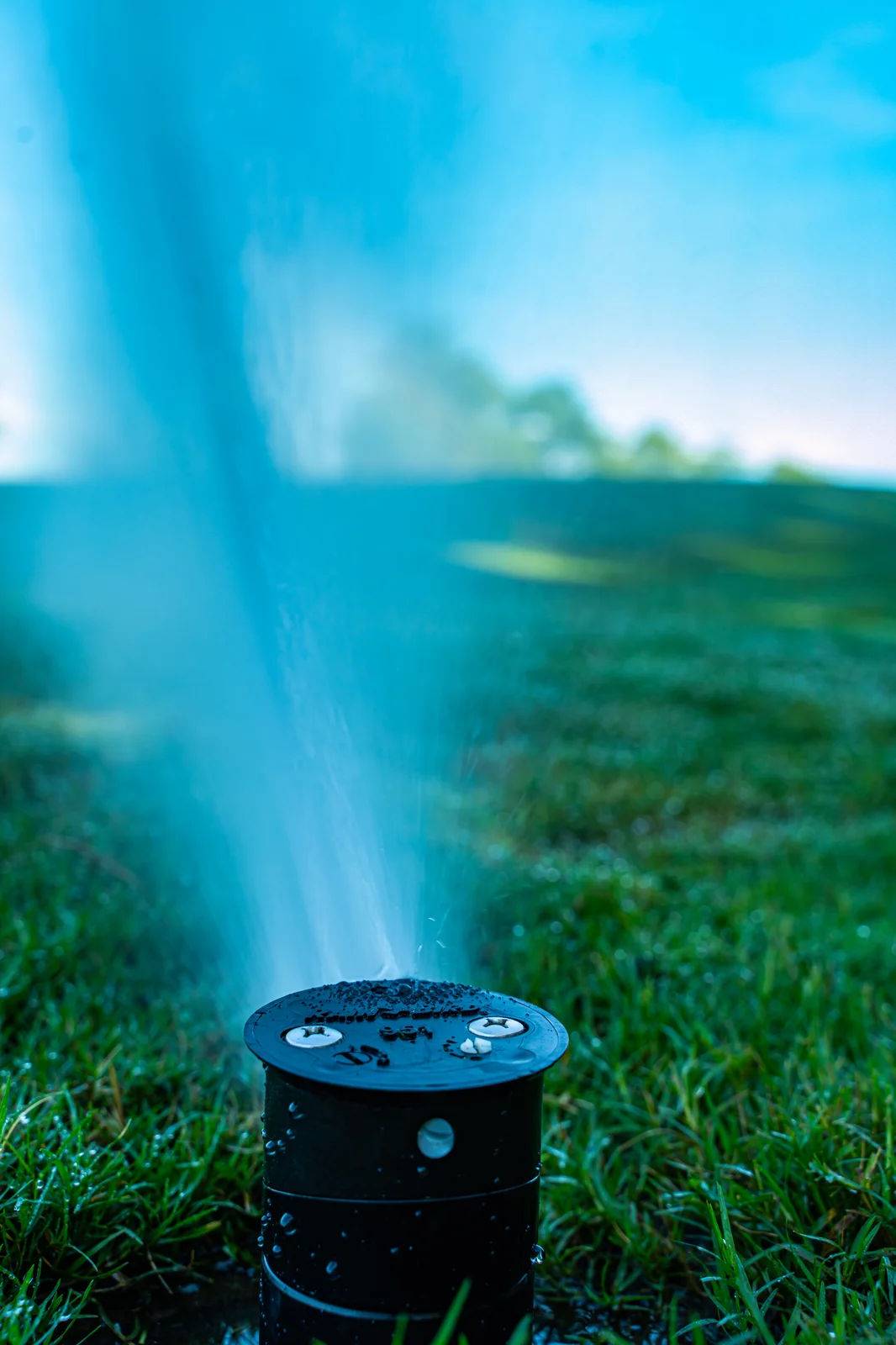

The Rainbird 952 Pop-up with Swing Joint is designed to water large turf areas up to 31.8m radius, this Rainbird sprinkler is ideal for bowling greens and golf courses. The sprinkler is a valve-in-head design with a built-in 24v AC operated solenoid valve.

The Rainbird 952 Series Rotors deliver extra-long throw ranges, increased droplet size and uniformity that is reliable and consistent. They are available in either full-circle or part-circle (30o – 345o) precision application.

Rain Bird golf rotors are designed specifically for large-scale irrigation installations such as golf courses.  If your irrigation needs are smaller please contact us for the right solution. The built-in solenoid valve delivers 25kV surge protection and built‑in filtration for a second level of protection from debris. Eliminates the most common maintenance tasks that plague competing rotors. The Rainbird 952 also features top down serviceability. With superior performance in a smaller footprint than competing rotors and an intelligent snap-ring design for quick access to serviceable components, Rain Bird rotors have long been the perfect choice for golf courses.

Rainbird 952 Pop-up Specification:

  • The nozzles operate between 4.1 and 6.9 bar pressure.
  • Sprinkler arc: Full circle plus part-circle 30° to 345°
  • As standard #46 Tan nozzle is fitted producing a radius of between 22.5 and 23.7m.
  • Valve-in-head design
  • Inlet: 1.5″ BSPF with 12″ swing joint
  • Dimensions: Body Height: 13.4″ (34.0 cm), Pop-Up Height to Mid-Nozzle: 2.6″ (6.6 cm), Top Diameter: 7″ (17.8 cm)

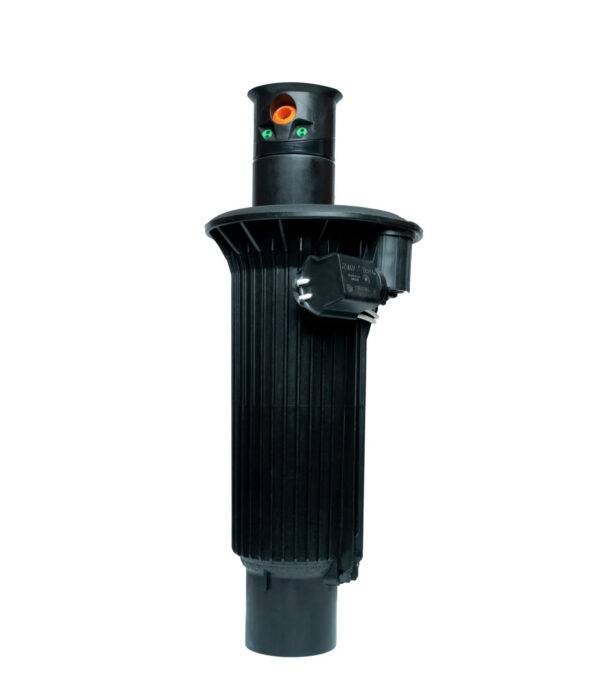

Rainbird 952 Pop-up with Swing Joint

Rainbird 952 pop-up sprinkler with integral solenoid valve and swing joint

From:   £651.00 (excl VAT)

From:   £781.20 (inc VAT)

- +

Code: KB950E

truck icon Free Economy delivery on orders over £125 + vat
